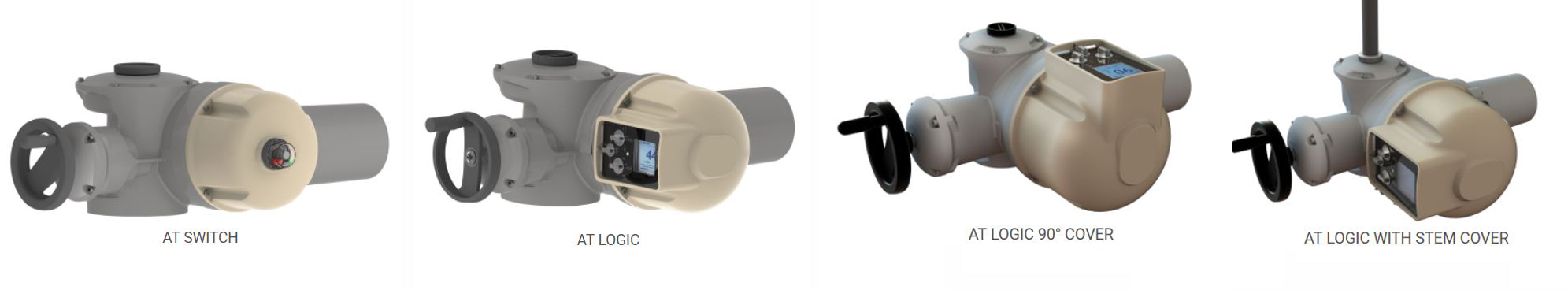

De nye multi-turn aktuatorene vil snart bli lansert med den nye AT-serien. Disse nye produktene er enda nærmere standardbehovene i kraft, vann og andre industri- applikasjoner enn den forrige generasjonen av multi-turn aktuatorer fra Bernard Controls. Den nye AT-serien garanterer de nødvendige grunnleggende funksjonene som kreves for å betjene en ventil eller et spjeld i moderate miljømessige og operasjonelle begrensninger.
Product architecture & torque range adapted to customers' requirements: 6 models from 30 to 500 Nm
Selection of the essential features to ensure a competitive but performing solution: actuator duty from On-Off to Modulating, heavy duty enclosure protection, IP68, integrated control, wide range of output speeds...
New reliable camblock system unaffected by vibrations. Fully new & unique design with internal modularity for compact solution, e.g. modular position sensor enables up to 1700 turns with the same product
PERFORMANCE FOR MULTI-TURN ACTUATION
From 30Nm (adjustable to 12Nm) to 500Nm (direct) and more with gearboxes
Wide range of speeds to address all types of applications
Wide stem acceptance
Self-locking at all speeds without any additional component*
S4 Motor Service Duty on all models
Suitable for modulating applications (BC Class III complying with EN15714-2 Class C)
EASY TO INSTALL
Easy commissioning: set up of travel limitation system (new camblock) with a standard screwdriver (similar to FIRST BC AQ range), only two standard tools required to install and set up the actuator on valve, wiring reduced to the minimum for fast assembly
Large LCD display on LOGIC version for user-friendly commissioning and local command. Easily orientable (4-way direction) in few clicks
Product suitable for rising stem thanks to adjustable torque sensor from 40 to 100%
EASY TO MAINTAIN
Declutch-free manual override for quick intervention on site

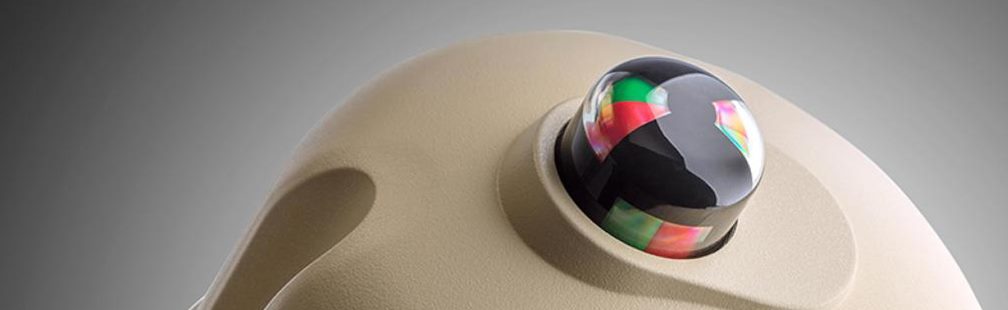

Mechanical position indicator on SWITCH versions: check the position of your valve at a glance
BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation
THE MAIN FUNCTIONS OF INTEGRATED CONTROL WITH THE NEW LOGIC (v2)
Turn-key, time & cost-saving solution
User-friendly & intuitive
Non-intrusive setting for enhanced safety and reliability
Compatible with common fieldbus protocols: Modbus RTU, Profibus DPV1.
Bluetooth communication (as standard) to communicate with Bernard Controls' BC App
