KompaktflÀktar AC/DC Hus: Formgjuten svartlackerad aluminium eller termoplast PBT. Vinge: Termoplast eller aluminium. Lager: Glid- eller kullager. Elanslutning: 2 flatstift eller kabel, försedd med jordfÀste (M4). Isolationsklass: B. TemperaturomrÄde: Glidlager -10°C till +70°C, Kullager -30°C till +75°C. SpÀnning: AC 230VAC 50/60Hz, DC 5, 12, 24 eller 48V.
590 SEK
Leverans från lager
| Produktserie | KompaktflÀkt AT 8111- |
|---|---|
| MatningsspÀnning | 24VDC |
| Effekt (W) | 4 |

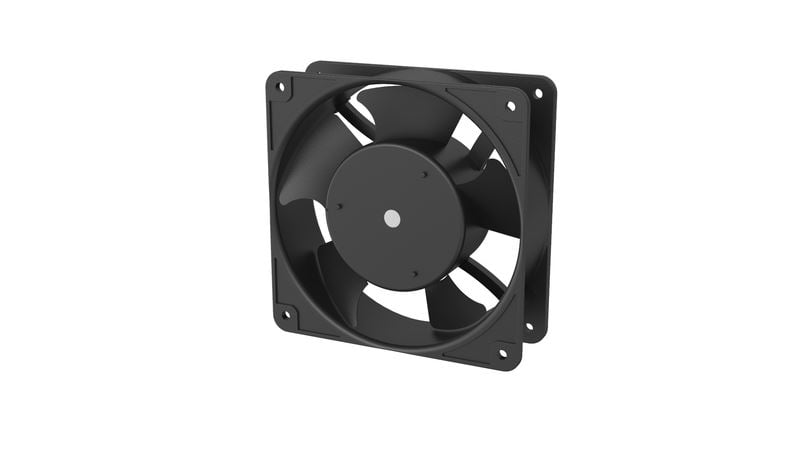

KompaktflÀkt A12038 V2 HBT-S
Ursprungsland: TW Taiwan
Tullstatnr: 84145995
Nettovikt (kg): 0.54
Bruttovikt (kg): 0.54
MĂ„tt A (mm): 80
MĂ„tt B (mm): 80
MĂ„tt C (mm): 25
Temperatur (°C): 0 - 1
MatningsspÀnning: 24VDC
Effekt (W): 4
| Artikelnummer | Matningsspänning | Effekt (W) | Varvtal | Mått A (mm) | Mått B (mm) | Mått C (mm) | Antal | |||
|---|---|---|---|---|---|---|---|---|---|---|
| AT 8111-11610824 | 230VAC | 15 | 2550 | 80 | 80 | 25 | 2025-08-04 | 560 SEK | ||
| AT 8111-11610840 | 230VAC | 10 | 2700 | 80 | 80 | 38 | 2025-08-04 | 870 SEK | ||
| AT 8111-11610920 | 230VAC | 15 | 2500 | 92 | 92 | 25 | 2025-08-04 | 750 SEK | ||
| AT 8111-11610924 | 230VAC | 15 | 2500 | 92 | 92 | 25 | 2025-08-04 | 600 SEK | ||
| AT 8111-11611221 | 230VAC | 5 | 2000 | 120 | 120 | 25 | 2025-08-04 | 760 SEK | ||
| AT 8111-11611241 | 230VAC | 15 | 2700 | 120 | 120 | 38 | 2025-08-04 | 680 SEK | ||
| AT 8111-11611244 | 24VDC | 4 | 80 | 80 | 25 | 2025-08-04 | 590 SEK | |||
| AT 8111-11611560 | 230VAC | 26 | 2700 | 172 | 150 | 55 | 2025-08-04 | 1 460 SEK | ||
| AT 8111-11617380 | 230VAC | 25 | 2800 | 172 | 151 | 38 | 2025-08-04 | 1 500 SEK | ||
| AT 8111-11620621 | 12VDC | 5 | 60 | 60 | 25 | 2025-08-04 | 410 SEK | |||
| AT 8111-11630420 | 24VDC | 4 | 40 | 40 | 28 | 2025-08-04 | 620 SEK | |||
| AT 8111-11630820 | 2025-08-04 | 435 SEK | ||||||||
| AT 8111-11630920 | 24VDC | 4 | 92 | 92 | 25 | 2025-08-04 | 429 SEK | |||
| AT 8111-11631750 | 24VDC | 21 | 150 | 51 | ||||||
| AT 8111-11631220 | 24VDC | 7 | 3100 | 120 | 120 | 25 | 2025-08-04 | 620 SEK | ||
| AT 8111-11611245 | 16 | 120 | 120 | 38 | ||||||
| AT 8111-11630620 | 1 | 60 | 60 | 20 |
8111-11611244-P3 A12038V2HBT-S_pds_1.pdf (PDF-fil, 356 kB)
