AT 3830

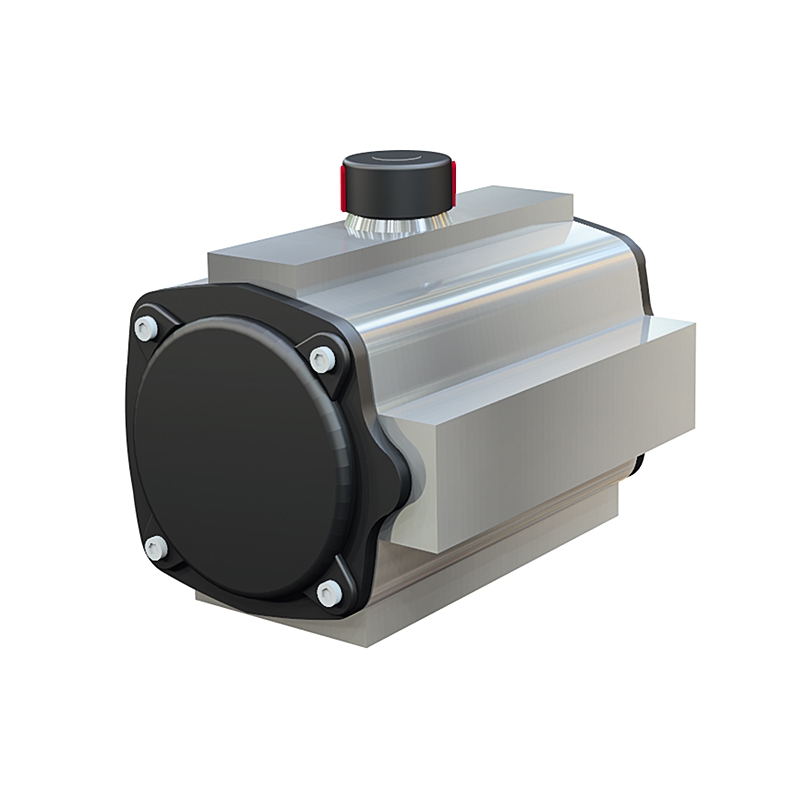

Actuator AT 3830

Pneumatic double acting actuators for on-off and control of ball valves and butterfly or where 90° rotation is required.

Torque6 Nm to 6421 Nm
DrivePneumatic
Suitable for articlesAT3502, AT3507, AT3533S, AT3534S, AT3582, AT3585, AT3590, AT2282, AT 2310-2319

Variations

Article number Performance Torque (Nm) Connection to valve ISO 5211 Amount
AT 3830-10 RSK 5353659 Pneumatic double acting 12 F03, 9 mm
AT 3830-20 RSK 5353665 Pneumatic double acting 19,5 F03/05, 9 mm
AT 3830-20F04 Pneumatic double acting 19,5 F04, 14 mm
AT 3830-40 RSK 5353669 Pneumatic double acting 41 F05, 14 mm
AT 3830-80 RSK 5354223 Pneumatic double acting 77 F05/07, 17 mm
AT 3830-130 RSK 5354224 Pneumatic double acting 118 F05/07, 17 mm
AT 3830-200 RSK 5354225 Pneumatic double acting 175 F07/10, 17 mm
AT 3830-300 RSK 5354226 Pneumatic double acting 291 F07/10, 22 mm
AT 3830-500 RSK 5354227 Pneumatic double acting 433 F10, 22 mm
AT 3830-850 RSK 5354228 Pneumatic double acting 718 F10/12, 27 mm
AT 3830-1200 RSK 5354229 Pneumatic double acting 1038 F10/14, 36 mm
AT 3830-1750 RSK 5354230 Pneumatic double acting 1413 F14, 36 mm
AT 3830-2100 RSK 5354231 Pneumatic double acting 2172 F16, 46 mm
AT 3830-2500 RSK 5354232 Pneumatic double acting 3461 F16, 46 mm
AT 3830-4000 RSK 5354233 Pneumatic double acting 4816 F16, 55 mm

Product information

Range of Application

Actuator for on-off and control of ball, butterfly and plug valves or where 90° rotation is required.

Program text

UEC.21 Actuator for valve, pneumatic, two position without spring return.

Actuator AT 3830 Pneumatic, double acting for on-off and control of ball valves and butterfly valves or where 90° rotation is required.

Quality Assurance

Solenoid valve connection and actuator top acc. to VDE/VDI 3845 (NAMUR).
Mounting flange and stem square drilled acc. to ISO 5211 and DIN 3337.

CE-marking
The actuators meet the demands from PED, AFS 1999:4 §8, The Pressure Equipment Directive and the machine directive, MD 2006/42/EG and ATEX 94/9/EC.

Actuators in the sizes 10 to 300 are classified as category SEP in accordance with the demands from PED 97/23/EC.

Actuators in the sizes 500 to 4000 are classified as category 1.

All Actregs pneumatic actuators are classified for use in potentially explosive atmospheres as Group II Category 2, suitable for zones 1, 2, 21 and 22 in accordance with Annex VIII of Directive 94/9/CE (ATEX).

Certificate from Germanischer Lloyd (GL). Lloyd's register of shipping can be delivered as an option.

Material Specifiation

DetailQuantityMaterialSurface treatment
1Body1AluminiumAnodized C3 according to EN-ISO 12944-2
2Wing1SteelElectroless nickel plated.
3Springs2-8Spring steelPre-stressed
4End caps2AluminiumEpoxy coated

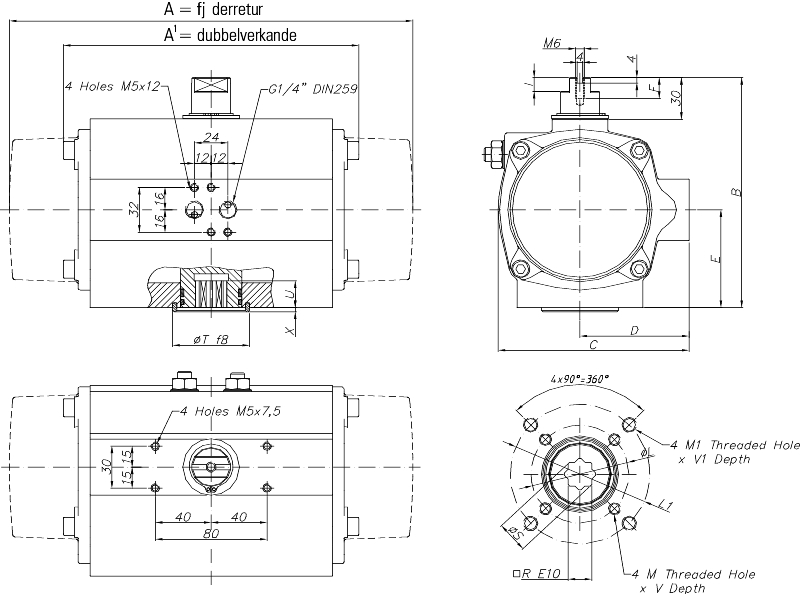

Dimension and weight

Actuator

size

38303831
AA´BCDEFI
101007656332396
201451639676483496
4015819511591564596
8017721713711166551212,5
1301962581471227160158
200225299165135,578701510
300273348,5182152,586801612
50030439719917396851715
850372473221191,5106981515
1200439560249212,51161141615
1750461601280242,51311301615
2100504698313276,51481471615
2500518738383356177,5176,51615
40006309404344152132011615
Measurements in mm, weight in kg

Dimension and weight

Actuator

size

Weight
RØSISOØLMxVØTXU38303831
10912,5F0336M8x5--120,64
201114,7F0442M5x10303171,41,54
401114,7F0442M5x10303172,12,32
801722,5F05/0750M6x105531933,65
1301722,5F05/0770M6x10553223,84,8
2001722,5F07/1070M10x16553235,67,3
3002228,5F07/1070M8x14703298,510,8
5002228,5F10102M10x167033211,2115,36
8502736,5F10/12102M10x178534016,922,2
12003648,5F10/14102M10x1710044925,834,3
17503648,5F14140M16x2610045032,546
21004660,2F16165M20x2613045049,768
25004660,2F16165M20x2913045869,699,9
40005572,5F16/25165M20x30200460129,4

182,9

Measurements in mm, weight in kg

Function and Design

Actuator with linear torque curve. Three point controlled of the pistons for low friction between the body and pistons. Mounting holes according to ISO 5211 and DIN 3337, for standardized mounting to the valve. End caps with adjustable screws for stroke length (5°). Mechanic end points as a standard. The piston force is transfered through the rotary axle to the valve stem (90° + 1°-0,5°). Actuator top and solendoid valve connection according to NAMUR (VDE/VDI 3845).

Actuators Actreg AT 3831 single acting:
The actuator is provided as a standard with spring closing function. If a spring opening function is required this has to be stated when ordering.

Technical Information

Pressure:Supply pressure max 8 bar (e). Higher pressures on request.
Temperature:-30°C to +100°C. Other ranges on request.
Operational medium:Air or inert gases, purity at least 40 micron.
(No requirements of mist lubrication). Oil or water.

Torque (Nm) AT 3830 double acting

ActuatorPressure (bar)
345678
AT 3830-106911121314
AT 3830-20

9,7

1316,219,52326
AT 3830-4020,327,133,9414754
AT 3830-8038,551,364,17790103
AT 3830-13059,178,798,4118138157
AT 3830-20088117146175205234
AT 3830-300145194242291339388
AT 3830-500217289361433505577
AT 3830-850359479598718837957
AT 3830-1200519692865103812111384
AT 3830-17507079421178141316491884
AT 3830-2100108614481810217225342896
AT 3830-2500173023072884346140384614
AT 3830-4000240832104013481656186421

Air consumption

ActuatorOperating time in s. at 8 bar ADA/ASRCylindervolume in liters
OpenCloseOpenClose
100,030,070,0350,028
200,04 / 0,120,09 / 0,180,130,09
400,08 / 0,20,08 / 0,290,270,23
800,11 / 0,270,1 / 0,40,640,47
1300,15 / 0,320,15 / 0,50,770,76
2000,15 / 0,50,22 / 0,61,191,2
3000,3 / 0,70,4 / 0,851,961,73
5000,4 / 0,90,5 / 1,12,952,74
8500,8 / 2,20,9 / 2,64,73,86
12001,2 / 2,31,5 / 2,86,954,64
17501,8 / 2,82 / 3,29,89,3
21002,3 / 3,32,6 / 3,711,610,2
25002,8 / 3,83,1 / 4,23225
40003 / 4,33,5 / 533,227,5

The current air consumption is obtained through multiplying the cylinder volume stated above with the available operational pressure in bar.

Dimensioning AT 3830 double acting

Actuator size102040801302003005008501200210025004000
Ball valve
AT 3502-3552DN8-2525-3240-506580100-150200200
AT 3533A-3534ADN10-1520-253240
AT 3535ADN15-2532-5065
AT 3580-3587DN

15

2025-40506580100-125150200250300
Butterfly
AT 2282DN80100-125150-200250300350400500
vidDp 10 bar
AT 2310-2344DN50-125150200250-3504005-600700800
vidDp 10 bar

Accessories and Options

Accessories

  • Visual position indicator.
  • Emergency gear shift between actuator and valve.
  • Internally connected pressurized air tank for emergency operation.
  • Block for control timing
  • Valve block for air evacuation from the acuator without dissassembly of the control air lines.
  • Inductive or mechanical limit switch.

Installation

The actuator can be installed indoors or outdoors in any position. All though mounting the valve with the air connections upwards should be avoided to minimze the risk of water and dirt to get inside of the valve.

Maintenance and spare parts

The actuator should be disconnected electrically and pneumatically before assembly or dissassembly is started. The actuator should be mounted with even spaced distances.

Spare parts
The repair kit includes the neccessary soft parts.

Marking

Article no., series no., max allowed working pressure.
Manufacturer
CE-marking

How to order

Example: AT 3830-40
AT 383040
Fig. nrSize
