Immersion heater AT 8526EL

Product information

Main facts

Dimension rangeTemperature rangeMaterial
Effect 3,0-10 kW-10 ºC to 125 ºCIncoloy 825

Range of application

Power cartridge for reserve heating of heating water/tap water to accumulator-tanks.

AMA-text

PLD.21 Power cartridge
Power cartridge AT 8526EL.... with effect... KW for reserve heating of tap water/heating water in the accumulator-tank. Including thermostat and overheat protection. The electric cartridge is manufactured in Incoloy 825 with brass nuts.

Quality assurance

The power cartridges are in accordance with EC Directives 2006/95/EC Electrical equipment designed for use in limited voltage range and EMC Directives 2004/108/EC Electromagnetic Compatibility according to EN6335-1.

Material specification

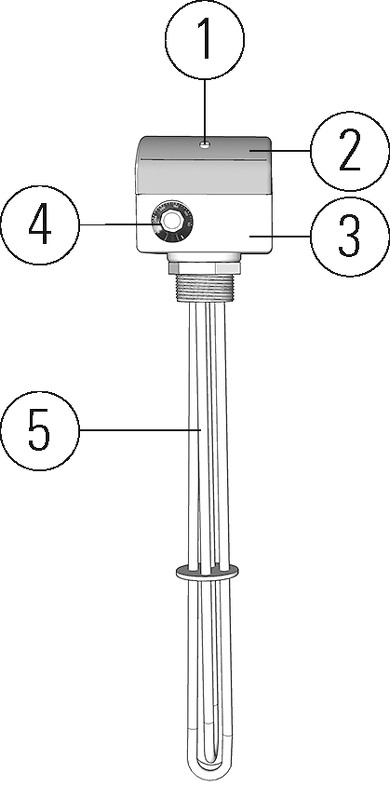

1

Reset button

2Lid
3Coupling box
4Control controls
5Power cartridge

Dimension and weight

AT-noLengthWeight
mmkg
8526EL3KW2600,8
8526EL4KW3901,0
8526EL6KW4201,05
8526EL7KW6401,3
8526EL9KW7601,55
8526EL10KW6801,45

Function and design

The power cartridge consists of a 2-pole thermostat and a 3-pole overheat protection. Max 10,000 W, 3-phase 400 V. Connection box S7 including thermostat and overheat protection. Connection terminal and internal wiring (100 mm, 150 mm or 200 mm) 100 mm as standard. For connection diagram, see the operating instructions.

Dimensioning

Contact Armatec

Installation

The power cartridge is mounted together with the connection box. Check thread size and insertion length, use thread sealing if necessary. The electric cartridge can be oriented in all directions in the tank but must be completely covered by fluid before power is switched on. For detailed assembly and installation instructions, see the operating instructions.

Maintenance and spare parts

The product is maintenance free.

How to order

Effect (kW)Fits tanks with volume (liter)AT-no
3,0300-40008526EL3KW
4,5300-40008526EL4KW
6,0300-40008526EL6KW
7,5500-40008526EL7KW
9,0750-40008526EL9KW
10,01000-40008526EL10KW
