Pressure Gauge AT 4258

Pressure gauge R1/4 x 63 mm. Class 2,5.Back tap.

Dimension rangeDN 8
PNFull scale value for temporary load
Temperature range-20ºC to +60ºC
MaterialBrass, plastic

Variations

Article number Measuring range (bar) Performance Material wetted DN Temperature (°C) Amount
AT 4258-8-2,5 0-2,5 Visual display Brass 8 -20-60
AT 4258-8-4 0-4 Visual display Brass 8 -20-60
AT 4258-8-6 0-6 Visual display Brass 8 -20-60
AT 4258-8-10 0-10 Visual display Brass 8 -20-60
AT 4258-8-16 0-16 Visual display Brass 8 -20-60
AT 4258-8-25 0-25 Visual display Brass 8 -20-60

Product information

Main Facts

DimensionPNTemperature rangeMaterial

G 1/4 - G 3/8

Full scale value for temporary load-20 °C to +60 °C

Plastic

Range of Application

For measuring the pressure of liquefied or gaseous non-aggressive media, primarily water, air and steam.

Program text

UGC.31 Pressure gauge
Pipe-mounted, with analogue display of instantaneous value. Pressure gauges AT 4258 of Bourdon tube type. Class 2.5, husdiameter 62 mm, graded 0 -.... bar / Pascal.

Quality Assurance

PED, AFS 1999:4

Material Specification

AT 4253AT 4257AT 4258
1Bourdon tubecopper alloycopper alloycopper alloy
2Husblack plastic ABSblack plastic ABSblack plastic ABS
3Mätverkcopper alloyplatinum brasscopper alloy
4Glasacrylic glassacrylic glassacrylic glass
Parts in contact with media is made of copper alloy

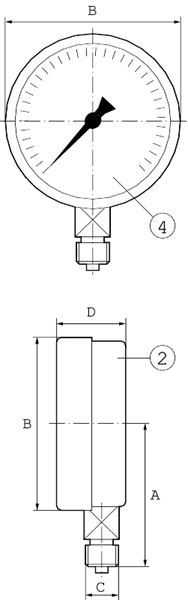

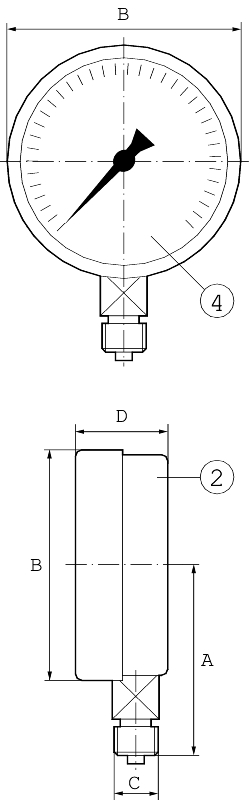

Dimensions

AT 4258
A-
B62
CG 1/4
D29 (with connection pin 47)
Measurment in mm.

Function and Design

The pressure gauge is a bourdon tube type, which involves a circle-formed tube spring with an oval cross-section. The system pressure internally affects the bourdon tube so that it, at a certain pressure tends to straighten out. The free end of the bourdon tube moves proportionally with the internal pressure. This movement is then converted by the measuring element into a movement/indication value on the dial.

Technical Information

AT 4258
Media temperature-20°C to +60°C
Ambient temperature-20°C to +60°C
Accuracy class2,5%
Effect of temperature0,4%/10°C (over and under 20°C)
IP class54
Max. working pressure75% of the scale value at resting load. 66% of the scale value at fluctuating loads.

Dimensioning

The scale range should be selected in accordance to the constant pressure that not should exceed 2/3 of the scale range.

Accesories and Options

For complete pressure gauges sets includning control pressure gauge valve, water trap pipe and and pressure gauge valve, please see our AT 1800-1806 product sheet. The pressure gauges are also available in damping fluid-filled, in stainless steel and with non-standard gradings upon request.

Installation

The pressure gauges are to be mounted so that they are both easy to read and protected against vibrations, heat, cold and high air humidity. For high fluid temperatures, a water trap pipe should be used. For pressure variations and vibrations, a damping fluid-filled pressure gauge should be used.

Marking

The products are marked with Armatec, class and grading.

How to order

Example: AT 4258-8-2,5
AT 4258-102,5
Article no.ExecutionConnectionGrading
AT 4258=bodydiam. 62 mm, back tap-=standard-8
D=damping fluid-filled
U=decompression
