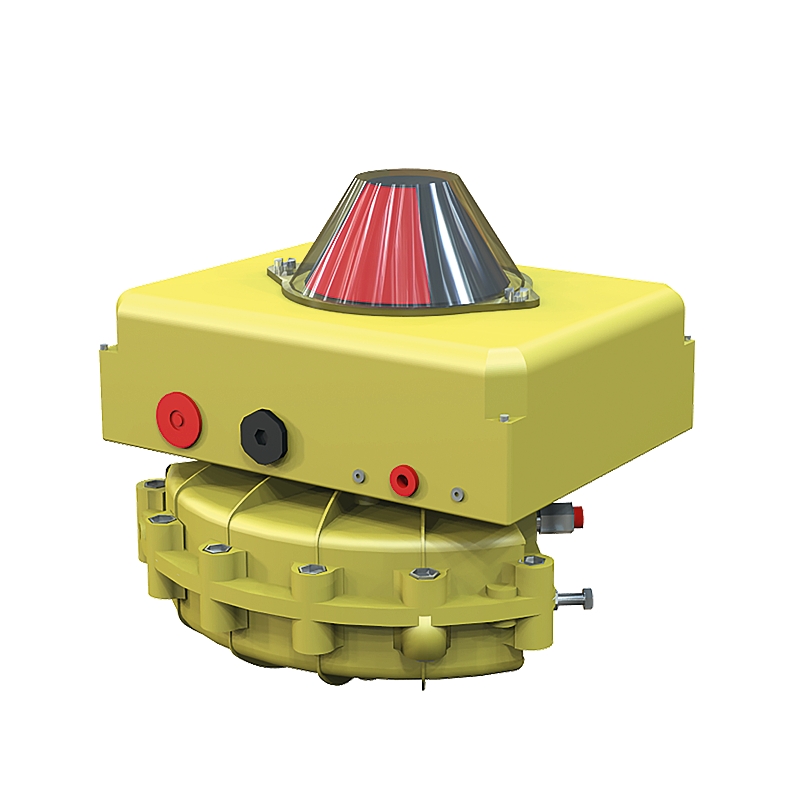

Pneumatic actuator AT 3840 with positioner

Pneumatic actuator with positioner 4-20mA for control of ball valves, butterfly valves or where 90° rotation is required.

Torque1 - 19000 Nm
DrivePneumatic
Suitable for articleAT3502, AT3507, AT3533S, AT3534S, AT3582, AT3585, AT3590, AT2282, AT 2310-2319

Variations

Article number Performance Torque (Nm) Connection to valve ISO 5211 Amount
AT 3840-5-POS Pneumatic double acting with positioner 43 F04/05/07, 14 mm
AT 3840-7-POS Pneumatic double acting with positioner 105 F05/07, 17 mm
AT 3840-8-POS Pneumatic double acting with positioner 169 F07/10, 22 mm
AT 3840-9-POS Pneumatic double acting with positioner 220 F07/10, 22 mm
AT 3840-10-POS Pneumatic double acting with positioner 355 F10, 22 mm
AT 3840-12-POS Pneumatic double acting with positioner 490 F10, 22 mm
AT 3840-14-POS Pneumatic double acting with positioner 1180 F12, 27 mm
AT 3840-15-POS Pneumatic double acting with positioner 1982 Contact Armatec
AT 3840-16-POS Pneumatic double acting with positioner 2650 F16, 46 mm
AT 3840-18-POS Pneumatic double acting with positioner 5950 F25, 55 mm
AT 3840-20-POS Pneumatic double acting with positioner 10960 F30, 75 mm

Product information

Range of Application

Pneumatic actuator for on-off and control of ball, butterfly and plug valves or where 90° rotation is demanded. Without spring return.

Program text

UEC.21 Actuator for valve, pneumatic, two position without spring return.

Actuator AT3840 pneumatic, double acting for control with mounted positioner 4-20mA control signal and return.

Quality Assurance

Solenoid valve connection and actuator top acc. to VDE/VDI 3845 (NAMUR), adapter is required.
Mounting flange and stem square drilled acc. to ISO 5211 and DIN 3337, adapter is required.

CE-marking
The actuators meet the demands from the machine directive, MD 2006/42/EC and ATEX 94/9/EC.

All Kinetrol pneumatic actuators are classified for use in potentially explosive atmospheres as Group II Category 2, suitable for zones 1, 2, 21 and 22 in accordance with Annex VIII of Directive 94/9/CE (ATEX).

Material Specifiation

DetailNoMaterialSurface treatment
1Body1Actuator 0-7 ZL16-BSEN1774:1998, larger actuators aluminum LM24Epoxy anodized C4 according to EN-ISO 12944-2
2Wing1Stainless steel
3Springs1Spring steel, Ur type.Pre-stressed

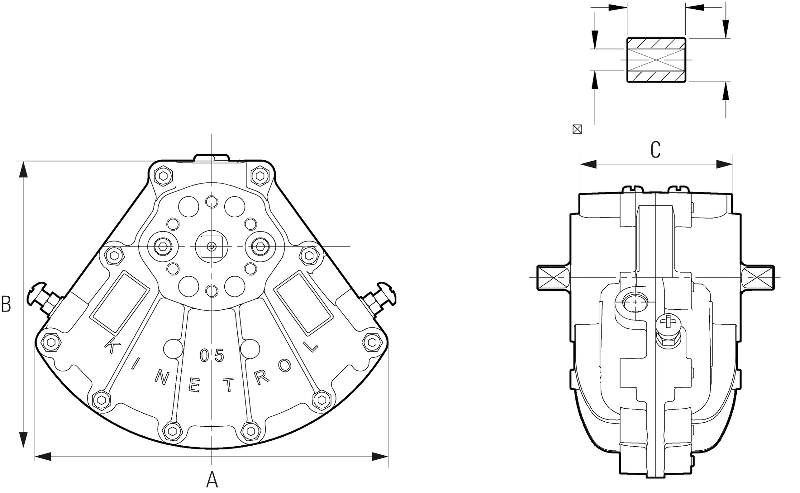

Dimension and weight

Actuator 3840
012357891012141516182030
A327291113137178208227230294380433530680680680
B31597691113146167187189239308353427554554554
C3638506067100110126151156200245274360620880
Weight0,120,290,460,731,283,302,784,165,66,913,421,037,417,4165,6273
Measurements in mm, weight in kg

Function and Design

The actuator only has one movable part which entails an outstanding operational dependability. The stroke length is adjusted simply with the help of stop screws on the side of the actuator. All actuators are function and tightness tested from a factory which guarantess 4 million operations. The actuators are modular and can be provided with limit switch box, positions, valve positioners and solenoid valve.

Mounting holes according to ISO 5211 and DIN 3337, for standardized mounting against the valve.

Headboards with adjustable screws for stroke length (5-10°).


Technical Information

Pressure:Supply pressure max 8 bar (e). Higher pressure on demand.
Temperature:-20°C to +80°C. Other ranges on request.
Manoeuvre medium:Air or inert gases, purity at least 40 micron.
(No requirements of mist lubrication). Oil or water.

Torque (Nm) AT 3840 double acting

ActuatorOperational pressure (bar)
34567
AT 3840-00.35050,60,750,9
AT 3840-12,63,54,55,66,7
AT 3840-24,66,48,240,212,1
AT 3840-39,613,417,421,325,3
AT 3840-520,027,535,04346,5
AT 3840-748,566,585,5105124
AT 3840-882,3111,4140,5169,0198,7
AT 3840-9102,0140,0179,0220261
AT 3840-10172232294355416
AT 3840-1456076097511801375
AT 3840-159371287163219822337
AT 3840-1613101750220026503100
AT 3840-1827503750485059506900
AT 3840-205310723090901096012760
AT 3840-30769510845136351644019140

Air consumption

ActuatorOperating time/Consumption
Time in secondsAir consumption
0-0,021
1-0,141
2-0,276
800,120,550
50,190,995
70,322,69
80,484,16
90,665,71
100,899,15
121,312,4
143,027,9
155,452,1
16-72,0
18-178,9
20337,9
30506,8

To calculate the exact time the valve's torque is required, contact Armatec.

Dimensioning AT 3840 double acting

Actuator size357891012141518
Ball valve
AT 3502DN8-2025-506580100125-150200
AT 3507DN8-2025-4050-6580100150-200
AT 3582,3585DN15-2025-4050-6580-100125150200250-300
AT 3582HT, 3585HTDN15-2025-3240-6580100125150
Butterfly valve
AT 2282DN80-100125150-200250300-350400500
AT 2310-2344DN50-100150200250-300350-500

Accessories and Options

Accessories

  • Visual position indicator.
  • Emergency gear shift between actuator and valve.
  • Internally connected pressurized air tank for emergency operation.
  • Block for control timing
  • Valve block for air evacuation from the acuator without dissassembly of the control air lines.
  • Inductive or mechanical limit switch.
  • Valve positioner, 4-20mA or 3-15 psi.
  • Limit switch box.
  • 180° rotation
  • "Spring to center"

Installation

The actuator can be installed indoors or outdoors in any position. All though mounting the valve with the air connections upwards should be avoided to minimze the risk of water and dirt to get inside of the valve.

Maintenance and spare parts

The actuator should be disconnected electrically and pneumatically before assembly or dissassembly is started. The actuator should be mounted with even spaced distances.

Spare parts
The repair kit includes the neccessary soft parts.

Marking

Article number, series number, max allowed operation pressure.
Manufacturer, year of production.
CE-marking, Ex marking including class.

How to order

Example: AT 3849-5
AT 38405
Article numberSize
