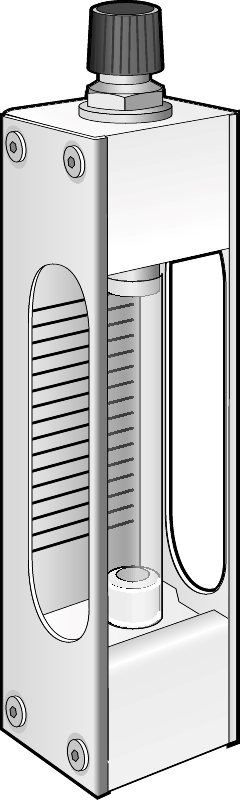

Floating body gauge AT 7730

Product information

Main facts

Dimension rangePNTemperature rangeMaterial

G 1/2

205°C to +80ºCStainless steel

Range of application

Immediate measurement of the flow of air or water.

AMA-text

UGE.31 Flow gauge
Tube mounted with analog current flow indication.

Quality assurance

According to PED 2016:1

Material specification

1BodyStainless steel 1.4401
2Flow tubeGrilamid (PA-12)
3FloatStainless steel 1.4460 ór1.4460/PTFE depending on the measure area
4End pieceNylon

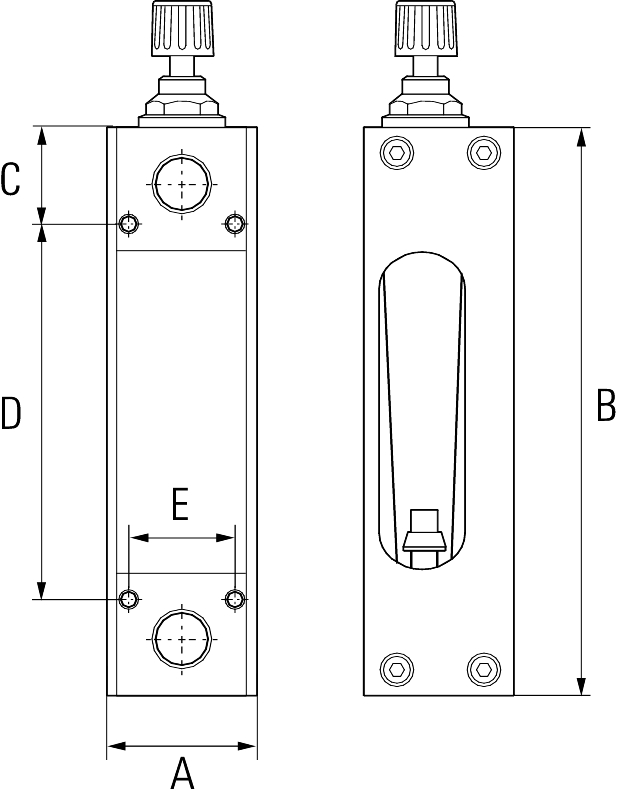

Dimension and weight

A53
B202
C34
D134
E38
Weightca 950g

Function and design

Float gauge in fluidised body-type for air or water. Measurement range in water 0.4 l / min to 30l / min and range in air 15Nl / min to 700Nl / min.
The instantaneous flow is read by the meter visually. The scale is adapted to the media. The flowmeter has an adjustment screw and is prepared for flow alarm.

Technical information

AdjustabilityAdjusting screw
ambient temperature0°C to +65°C
Media temperature5°C to +85°C
Storage temperature5°C to +65°C
Inaccuracy±5%

Accessories and options

Flowmeters in other materials or for higher temperature on request.

Installation

The flowmeter is installed in the flow direction horizontally.

Marking

The pressure sensor is labeled with the manufacturer's name, measuring range and serial number.

How to order

AT7730-3V
AT 77303V
Fig. noFlow area (l/min)V=Water
L=Air

Pressure range

AT 4883-1-2,5-6-10-16-25-40-60-100
Pressure range bar0-10-2,50-60-100-160-250-400-600-100
Max. pressure bar1016303050507070200
